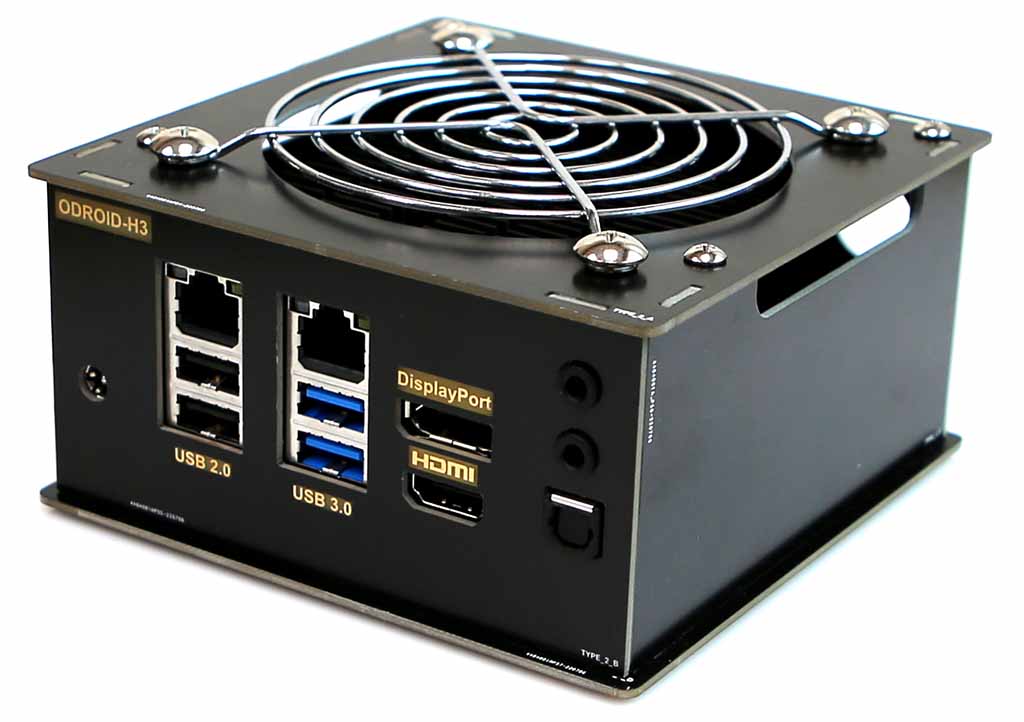

RUNa 0 Fuchs Odroid H3 / H3+
Ideal as home server & media centre (& NAS in the future).
– 2 TB NVMe SSD M2 M-key Samsung 970 EVO Plus.
– 16/32GB RAM (upgradable to max 64GB).
Wifi not needed (better for security).
Specs of Odroid H3 vs H3+
| Processor | Base Clock | Boost Clock | L2 Cache | L3 Cache |
|---|---|---|---|---|
| Intel® Quad-Core Processor Jasper Lake N5105 | 2.00 GHz | 2.90 GHz | 1.5 MB | 4 MB |
| Intel® Quad-Core Processor Jasper Lake N6005 | 2.00 GHz | 3.30 GHz | 1.5 MB | 4 MB |
The N6005 has a about 1.14X higher boost clock than the Celeron N5105, which means it can perform faster in single-core tasks.
Both processors have the same base clock, L2 cache and L3 cache, which means they have similar performance in multi-core tasks and memory access.
The Pentium Silver N6005 also has a more powerful integrated GPU than the Celeron N5105, with 32 execution units and up to 900 MHz frequency, compared to 24 execution units and up to 800 MHz frequency for the N5105.
Shared Specs
- Up to 64GB Dual-channel Memory DDR4 PC4-23400 (2933MT/s),
Two SO-DIMM slots, up to 32GB per slot. - PCIe 3.0 x 4 lanes for M.2 NVMe storage.
- 2 x SATA 3.0 ports (can add 2 HDD & SSD extra!). In the road map:
to offer a real home server version with 2 extra SSDs option with RAID1. - 2 x 2.5Gbit Ethernet LAN ports (supports 10/100/1000/2500 Mbps).
- 2x USB.0 3, 2x USB 2.0.
- HDMI 2.0 & Displayport 1.2.
- At least 2X Odroid M1 8GB RAM / HC4 4GB RAM specs that are 15K vs 30K average (max 50k) (that are already 30% faster than Raspberry Pi 4):
https://pibenchmarks.com/board/ODROID-H3/
Included for immediate Plug and Play:
15V 4A Power Supply & 1m cat 7 LAN cable,
Ubuntu 20.4 preinstalled & Umbrel OS ready.
Minimal noise with Nocturnal 92mm ventilator (not in the photo yet).
Nocturnal 92mm not in the photos yet (coming soon).
Minimal risk to be noticed by GF, France & Wife.
Can always say it is a media centre for movies ;-).
Maximum consumption 18W, 158 kWh yearly.
Downloads & Syncs Bitcoin full blockchain in less 3 days max.
FAQ
Why Odroid?
Odroid M1 4-6X faster than Raspberry Pi 4 Board
